Setting Up Output Stream

SkyRoof can optionally send the raw I/Q data or demodulated audio, either to a Virtual Audio Cable (VAC) or as a stream of UDP packets. The data are sent as 32-bit floating point values in the IEEE 754 format. The sampling rate is 48 kHz in all streaming modes.

Configuring

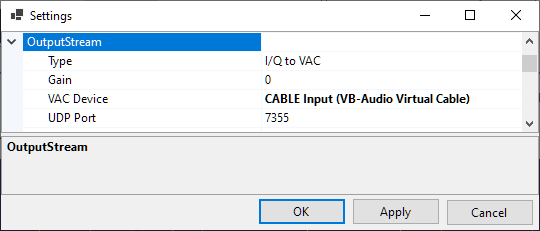

Click on Tools / Settings in the main menu to open the Settings window:

Output Stream Settings

  • Type - select the stream type:

    • I/Q to VAC;
    • Audio to VAC;
    • I/Q to UDP;
    • Audio to UDP.

  • Gain - gain or attenuation, in dB, that will be applied to the streamed data;

  • VAC Device - the Virtual Audio Cable device to use;

  • UDP Port - the UDP port number to use.

Output streaming can be turned on and off by clicking on the Output Stream label on the status bar:

Output Stream Label
