Satellite Data

Data Sources

SkyRoof obtains satellite date from several sources:

SatNOGS DB is the main source of satellite data. It is a frequently updated, crowd-sourced dataset that contains detailed information about all satellites transmitting in the Ham bands;
JE9PEL Satellite List is another dataset with information about the satellites, maintained by Mineo Wakita JE9PEL, that, in particular, includes the callsigns of the satellites. SkyRoof also mines the JE9PEL mode descriptions to fill in the signal parameters that SatNOGS leaves blank.
LoTW - The ARRL LoTW service accepts satellite QSO only if the satellite abbreviation is one of those published on their web site. These abbreviations are stored in a file in the Data folder, you can view them in the Satellite Details window.
AMSAT Live OSCAR Satellite Status Page accepts satellite observations with their own satellite abbreviations, these abbreviations are stored in a file in the Data folder.

Signal Parameters

To decode a satellite's telemetry, SkyRoof needs the modulation, baud rate, and framing of its downlink. These are resolved for each transmitter from several sources, in order of priority:

your manual overrides (see below);
the gr-satellites database;
the JE9PEL satellite list;
the SatNOGS DB transmitter description.

The first source that specifies a given parameter wins, so a higher-priority source fills in only what the lower-priority ones leave unknown. The resolved values appear in the mouse tooltip of the transmitter on the Frequency Scale.

Overriding Signal Parameters

When the automatic sources are wrong or incomplete, you can correct them in the transmitters-override.json file in the Data folder. Each entry is keyed by the transmitter UUID and lists only the fields to change, for example:

{
  "FdxJrwmqFrJnP3sd96Bip8": {
    "satellite": "SITRO-AIS-56", "norad": 59778,
    "modulation": "GMSK", "baudrate": 2400, "framing": "USP"
  }
}

SkyRoof ships a default copy of this file and refreshes it as new corrections are published. To keep your own edits from being overwritten, add "read_only": true to the entry — SkyRoof then never replaces it. Entries you add that are not in the shipped file are always kept.

The telemetry definition files in the TelemetryRegistry folder work the same way: add "readOnly": true (camelCase, to match those files' key style) to a definition to keep your edits when SkyRoof updates its bundled definitions.

TLE

The satellite orbit elements (TLE data) are downloaded from SatNOGS DB.

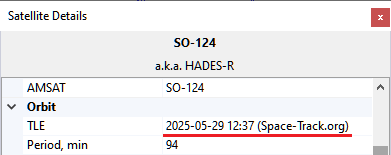

SatNOGS obtains these data from different sources and makes the latest and most reliable data available on their web site. The source of TLE and its creation time are shown in the Satellite Details window or panel:

TLE Date

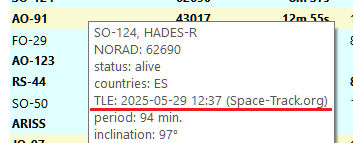

and in the mouse tooltip of the satellite:

TLE Date

Automatic Updates

SkyRoof automatically downloads the satellite list every 7 days, and TLE data every 24 hours.

The mouse tooltip of the Satellite Data label on the status bar shows the last download time:

Satellite Data Age

The light next to the label turns yellow if the satellite data are not up to date.

Manual Updates

In addition to automatic downloads, the data may be manually downloaded at any time using the Tools / Download All Satellite Data and Tools / Download Only TLE menu commands.

Loading TLE from File

If your system is not connected to the Internet, you can load TLE data from a local file using the Tools / Load TLE from File menu command. Two TLE formats are supported:

.json - TLE data from the SatNOGS web site, recommended (download);
.txt - 3-line TLE data in a text file, available from many sources, e.g. CelesTrak (download).

Note that TLE import cannot add new satellites, it only loads orbital elements for the satellites already in the database.

AMSAT Satellite Status

AMSAT Live OSCAR Satellite Status Page is a crowd-sourced, real-time Ham satellite status page.

Posting Status Data

You can post your satellite status observations the the AMSAT web site either by filling the submission form on their site, or using the right-click menu of the satellite labels on the Frequency Scale. A valid Ham callsign must be entered in the Settings window for this function to work.

Downloading Status Data

Set the Amsat Satellite Status / Enable option in the Settings window to true to enable automatic downloads of the satellite status information from the AMSAT web site. The statuses are shown on the Current Group panel, the green and red icons represent the active and inactive status respectively.

Satellite status data are downloaded once an hour. You can manually download it at any time using the Tools / Download AMSAT Statuses menu command.
